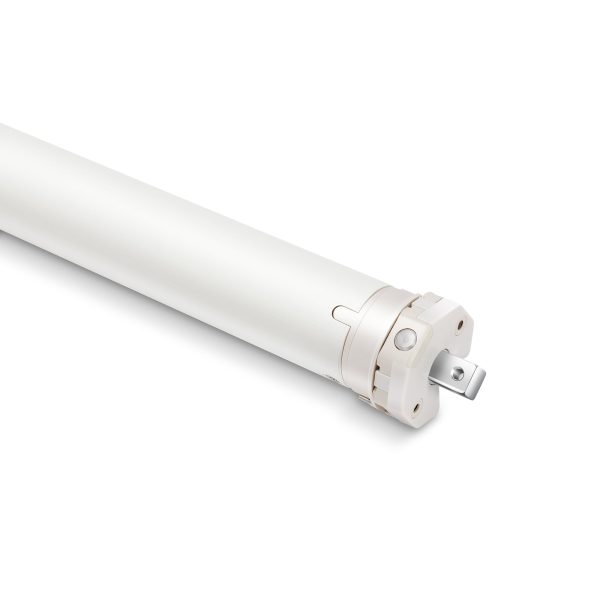

Aqara Smart Roller Shade Motor / Controller
The Aqara Smart Roller Shade Controller is an electric smart curtain motor, which can automate ordinary roller blinds, Shangri-La blinds and other curtains. It has a built-in Zigbee wireless communication module. Paired with a hub device, it can realise functions such as remote control, timing opening and closing of curtains, and smart connection of several devices.
Compatibility
Aqara Smart Roller Shade Motor / Controller is compatible with the following systems:
£110.99
EAN / Barcode: 6970504214330
Description
Open or close the curtains via your smartphone, cube controller, or wireless switch
The Aqara Smart Roller Shade Controller is an electric smart curtain motor, which can automate ordinary roller blinds, Shangri-La blinds and other curtains. It has a built-in Zigbee wireless communication module. Paired with a hub device, it can realise functions such as remote control, timing opening and closing of curtains, and smart connection of several devices.
Features:
- Customise Opening/Closing Position: You can save your favourite opening percentages via smart scenes and switch between them easily.
- All-Round Compatibility: Supports the most popular voice assistants and ecosystems.
- Schedules: Your shades will open and close at a specified time of the day, for example, right before your alarm clock.
- Smart Home Automation: Can be triggered by sensors such as Illumination, Motion, Door and Window Sensor, and more.
- One Button Control: Can be fully controlled by a single button such as the Wireless Mini Switch.
- Various Blind Types of Support: Apart from regular roller blinds, dual and sheer shades are also supported.
- Zigbee Protocol: Enjoy the benefits of the fastest, most stable, and energy-efficient smart home technology.
- Projector Screen Support: Your screen will be automatically lowered when you turn on the projector.
* Aqara hub is required
** Additional fittings are required and should be purchased separately
Manuals and Guides
Frequently Asked Questions
What is the maximum load the Aqara Roller Shade Controller supports?
30KG
How much is the torque of the Aqara Roller Shade Controller?
8N·m
How can I reset the Aqara Roller Shade Controller?
Press and hold the reset button for 5 seconds until the blue indicator light goes on, then release it.
Can the curtain be opened/closed after the Aqara Roller Shade Controller powers off?
No, the motor can not be turned on/off manually after it powers off.
If the curtain will close when we control the device to open it and vice versa, how could we adjust it to the correct direction?
You need to adjust the direction through “Adjust opening/closing direction of curtain” in “Settings” in the Aqara Home app.
When I press the Up button "△" on the control box, the curtain runs downward. How can I fix this problem?
Press and Hold the Stop button “||” on the control box for 5 seconds until the blue indicator light goes on and then release it. When you hear the motor short beeps three times, the motor will return to normal status after it turns forward and backward once.
After the motor has been running for a period of time, why doesn't it respond when I continue to control the curtain?
When the motor runs continuously for about 4 minutes, the motor will stop running and enter the overheating protection state. When the temperature returns to the appropriate level, it will work normally again (approximately 10-30 minutes to recover).
After the Aqara Roller Shade Controller connects to the app, why can't I see the control button when I enter the homepage of the app?
When the route of the motor is not set completely, the motor cannot be controlled through the app, and the homepage of the app will not display the control buttons. You need to complete the route settings according to the guideline, and then enter the Aqara Home app to control it.
What type of curtain does the "dimming control" feature apply to?
The “dimming control” feature is suitable for Venetian blinds, Shangri-La blinds, gauze curtain, etc. You can use this feature to control the blade inclination angle of the Venetian blinds and Shangri-La blinds or set the overlapping area of two layers of gauze curtain to adjust indoor lighting.
Videos
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Weight | 1.7 KG |
Misc Product Attributes | |
Product name: Aqara Smart Roller Shade Controller Product model: SRSC-M01 Rated voltage: 220-230V~ 50Hz Rated power: 121W Rated current: 0.53 A Executive standard: Q/QLML016 Operating temperature:-10°C~+40°C Operating humidity: 10%~95% RH, non-condensing Pipe diameter: 35mm Rated torque: 8N·m Rated rotor speed: 17 r/mi Wireless connection: Zigbee Working system: S2 4min Zigbee Operation Frequency: 2405-2480 MHz Zigbee Maximum Output Power: ≤13 dB | |
