EZVIZ DB1C Inc Chime and Transformer Kit

Description

• Clever AI Human Detection
• Answer your door via the EZVIZ app wherever you are
• Know when someone is at the door with the EZVIZ Chime unit
• Secure the entry point of your home for peace of mind
• Push notifications sent to your phone when motion is detected.

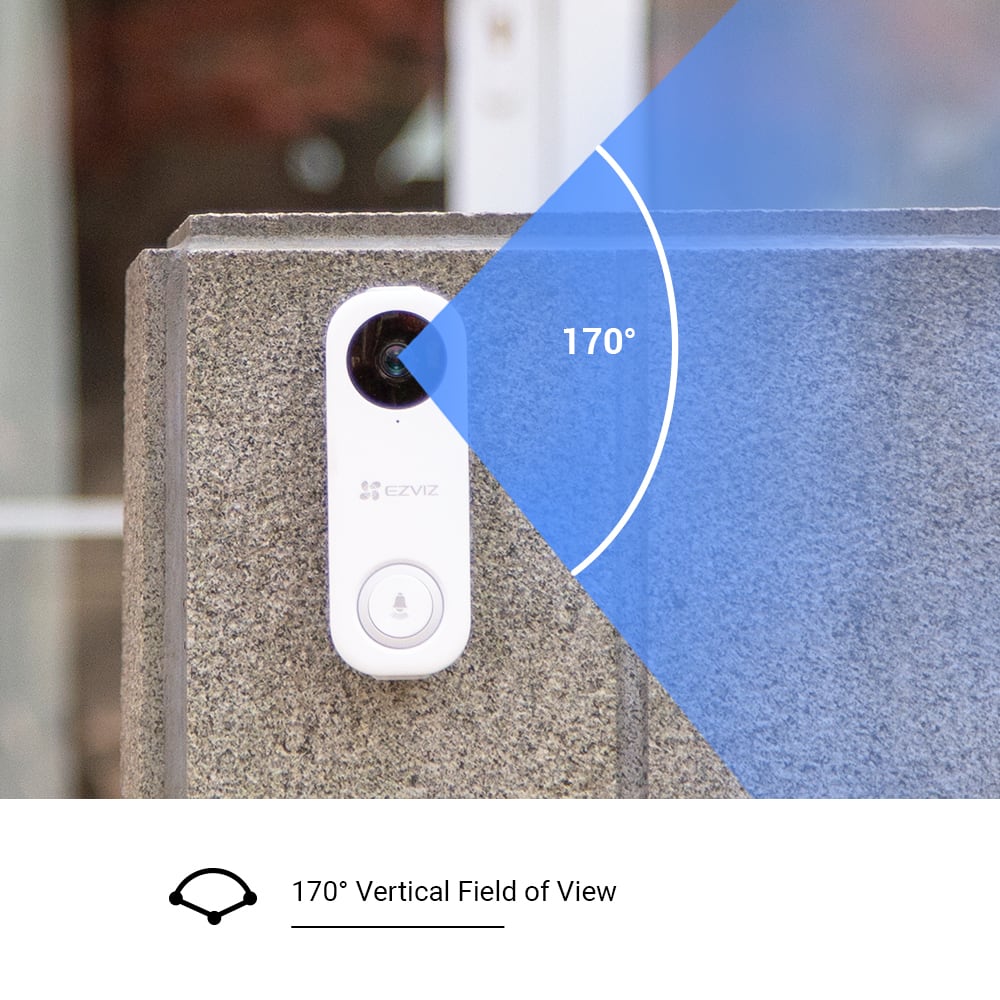

• Superb 170-degree vertical head to toe viewing angle, 105-degrees horizontally – giving you the best picture.
• Power transformer included
• Compatible with Amazon Alexa, Google Assistant and IFTTT
• Let’s you see, listen and speak to visitors from your smartphone or PC/Mac computer

Introducing the EZVIZ DB1C Video Doorbell with AI Human Detection

EZVIZ’s Video Doorbell has a clear 1080p Resolution camera and Weatherproof casing for Outdoor use. It’s 170-degree vertical viewing angle lets you see who’s there from head to toe and even talk to them when you are not home. Connect it to your smartphone via the EZVIZ app to keep your home safe.

Answer the door from anywhere – The Doorbell initiates a video call via the EZVIZ App when someone rings your doorbell, so you’ll never miss a visitor. See and talk to your visitors from your phone anywhere, any time. The built-in microphone and speaker make it easy for you to hear what’s happening outside the door.

Know when someone is there – as well as seeing on your phone via the EZVIZ app, you can also rely on the Chime unit. Covering a three-meter radius with up to 72 dB of volume, the Chime gets the job done beautifully. As soon as someone presses your doorbell, you will hear one of the several pleasant tones while also receiving an incoming video call request on the phone via the EZVIZ app. Choose your favourite ringtone from a selection of 20 available, to suit your taste and environment.

Be Informed – With its AI algorithm onboard, the DB1C intelligently detects a person’s movement, ensuring that you only receive notifications when people move by. You can turn off this function if you need other motion alerts such as those triggered by animals or cars.. Motion detection alerts will trigger a notification to be sent to your smartphone via the EZVIZ app which brings attention to the event occurring from wherever you are.

It’s Amazon Alexa & Google Home Compatible – Using the sound of your voice you can view live footage via your Amazon Alexa and Google Hub

Secure Your Home Day & Night – Infrared helps deliver crystal clear night vision, providing 24/7 security in your home or office.

Two-way Talk – The internal microphone supports audio pickup within five meters and video recording with sound, meaning you can have a two-way conversation if needed via the EZVIZ app.

We have you prepared – The kit also includes a transformer unit in case you need extra power from an existing or new door chime unit to your doorbell. See instructions for further details.

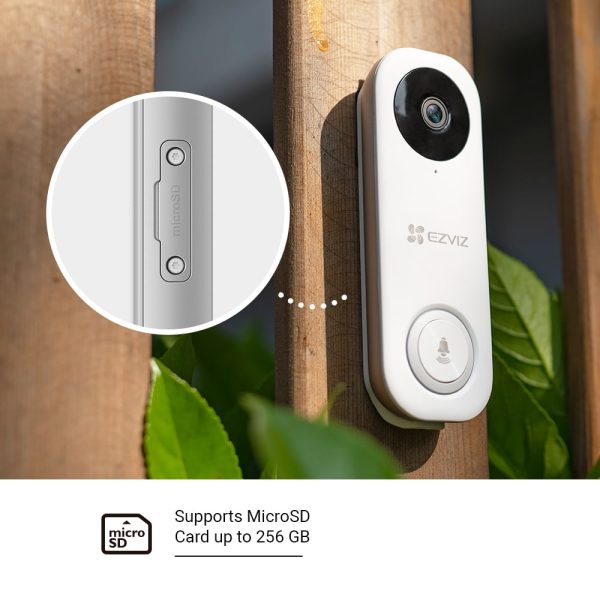

Storage of footage – EZVIZ cameras can hold a MicroSD card (up to 128GB) for local storage upon each detection, or alternatively you can sign up to EZVIZ’s Cloud Storage system (subject to subscription costs)

What’s in the box

• Doorbell
• Chime
• Standard Transformer
• Mounting Plate x 2
• Plate Foam
• Power Kit
• Drill Bit
• Screwdriver
• Mounting Screw x 3
• Anchor x 3
• Wire connecter x 4
• Security Screw
• Fixing Screw x 2
• Wire Harness
• Fuse Wire
• U-shaped Wire x 2
• Quick Start Guide

Intercom Specifications

Working Temperature: -10 °C to 45 °C (14 °F to 113 °F )

Working Humidity: 95% or less (non-condensing)

Power Supply: AC 12 V to 24 V (220 mAh backup battery)

IP Grade: IP65

Weight: 102 g (3.60 oz)

Dimensions: 128.3 x 46.3 x 19.3 mm (5.05 x 1.82 x 0.76 inch)

Packaging Dimensions: 172.5 x 102 x 97 mm (6.79 x 4.02 x 3.82 inch)

Storage: H.264 / H.265

Audio Input: Ultra-HD; HD; Standard. Adaptive bit rate.

Audio Output: Built-in high-power speaker

Reset button: Yes

Network Specifications

Intelligent Alarm: Motion detection (with person-shape detection)

Video Intercom: Long-distance video two-way talk

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Wireless: IEEE802. 11a/b/g/n, 2.4 and 5 GHz dual bands

Channel Bandwidth: Supports 20 MHz

Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Audio / Video

Image Sensor: 1/2.4″ Progressive Scan CMOS

Lens: 2.1 mm @ F2.4, view angle: 170° (Vertical)

Day & Night: IR-cut filter with auto-switching

Night Vision: Max. 5 m (16.4 ft.)

Max. Resolution: 1536 x 1536

DNR: 3D DNR

WDR: Digital WDR

Video Compression: H.265 / H.264

Frame Rate Max: 15 fps; Self-adaptive during network transmission

Chime Specifications

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Storage: No

Wired Network: Does not support

Power Supply Interface: EU/UK Standard Plug

Wi-Fi Standard: IEEE802.11b / g / n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate: 11b: 11 Mbps, 11g: 54 Mbps, 11n: 144 Mbps

Antennas: Dual External Antennas

Operating Conditions Temperature: -10 °C to 40 °C (14 °F to 104 °F )

Humidity: 95 % or less (non-condensing)

Power Supply: 100V – 220V AC

Power Consumption: Max 0.6 W

Dimension: 100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch)

Weight: 120 g (4.23 oz)

Transformer Specifications

Rated Input Voltage: 230V AC

Rated Output Voltage: 8V, 12V, 24V AC

Rated Frequency: 50 Hz

Rated Power Output: 8V: 10VA; 12V: 20VA; 24V: 30VA

Power Consumption: 1.15 W

Service Period: Continuous operating

Connection Terminals: Pillar terminal with clamp

Connection Capacity: Rigid conductor 10 mm²

Installation: On symmetrical DIN rail 35 mm panel mounting

Terminal Connection: Height H=15.5 mm

Operating Conditions: -5 °C to 40 °C (23 °F to 104 °F), Humidity 95 % or less

Dimensions: 35.3 x 86 x 68 mm (1.40 x 3.39 x 2.68 inch)

Net Weight: 323 g (11.4 oz)
