LiftMaster LA250EVK Double Swing Gate Opener Kit – myQ Compatible

Motor Voltage:
24v
Max Weight:
250KG
Max Length:
2.5M

Maintenance-free 24 V operator for residential swing gates with leaves up to 2.5 meters wide. Cutting-edge technology meets modern design.

Compatible with myQ smartphone operation when used with the myQ Internet Gateway accessory.

£849.98

Accessories

This item: LiftMaster LA250EVK Double Swing Gate Opener Kit - myQ Compatible
£849.98
£849.98
LiftMaster 828EV myQ Internet Gateway
£68.40
LiftMaster TX4EVF 4 Button Remote Control
£37.18
Liftmaster 772E Photocells
£47.26
LiftMaster 490EV Backup Battery For EVK Series Gate Openers
£70.80

SKU: LA250EVK-01 Category: Tags: , ,

EAN / Barcode: 4014243224150

Gate Measurement Video Guide

If you need help determining the A / B measurements of your gate, check out our helpful video guide (right).

Description

Maintenance-free 24 V operator for residential swing gates with leaves up to 2.5 meters wide. Cutting-edge technology meets modern design. A door leaf may weigh up to 250 kg per wing. The maximum width of a door leaf per wing is 4 m. A maximum door opening angle of 110° is possible.

Features

  • SMART HOME – myQ compatible smartphone operating enabled*
  • 24V DC motor that is dependable
  • 3 band multi-frequency radio that is simple to set up and program
  • Low standby consumption

*use of myQ features requires the LiftMaster 828EV myQ Internet Gateway

MyQ - What Is It And How Does It Work:

Device of Choice

Control your gate or garage door via smartphone, tablet or Apple Watch

myQ phone on desk
My Q application

LiftMaster Internet Gateway

Your command is then transmitted to the Internet gateway

Your Gate or Garage Door Opener

Then your command is executed by the compatible gate or garage door opener

LM100EV garage door application
garage door closing

Open and Close the Gate or Garage Door

Making it a lot easier to leave and arrive without the hassle

myQ General Info

myQ Installation Guide

App Features

MyQ app Mockup

Operate everywhere you go

Open and close your gate / garage door using your smartphone

Real-time notifications

Get notified if your gate / garage door opens, closes or is left open

Custom Schedules

Set up rules for your gate / garage door to be closed at a certain time

Share Access

Allow up to five guests to control your gate / garage door, using myQ Guest profiles

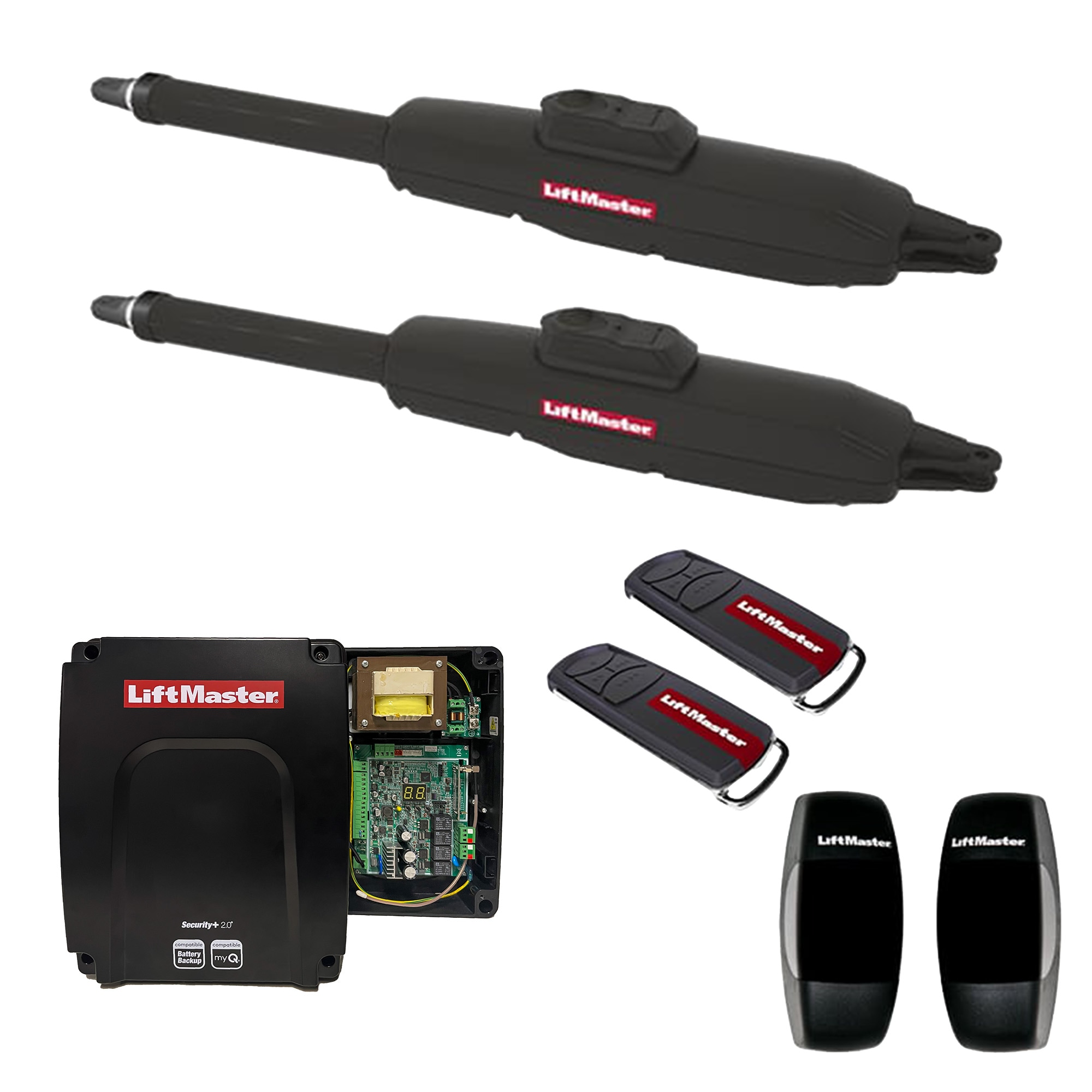

Kit Contents

  • 2 x LA250EVK 24v ram motors
  • 1 x CB324EV  control board with integrated RF module operating on 868 & 433 MHz EVO code
  • 2 x TX4EVF 868.35 MHz, 4 channel remote controls
  • 1 x 772E pair of adjustable failsafe photocells
  • 2 x Sets of installation hardware
  • 4 x Emergency release keys
  • 1 x Installation manual

Manuals & Datasheets

Product Specifications

Physical and Performance Attributes

Weight19.6 KG
Protection Rating (IP)44
Mounting TypeSurface Mounted
Operating Temperature-20°C to +55°C

Electronics Attributes

Voltage24V
Input Voltage230-240 V
Frequency Range50/60 Hz

Motor Attributes

Duty Cycle / Work Cycle

8 (hour) 25 (day)

Motor TypeRam
Motor Voltage24v
Safety Edge Input8K2OHM, NC
Soft-Start / Soft-StopYes
Automation TypeRam
Kit TypeDouble
Max. Gate Leaf Length (M)2.5M
Max. Gate Weight (KG)250KG
Force (N)1250N
Obstacle DetectionEncoder
Number of Leafs2
Max Opening Angle110°
