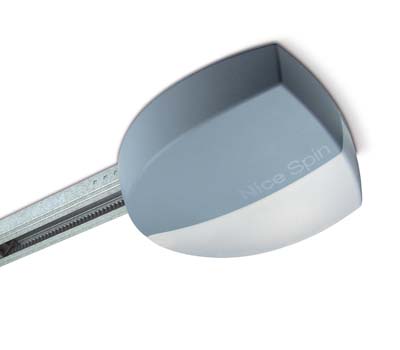

Nice SpinBus30 24v Garage Door Opener
Unfortunately, this product has either been discontinued, or we no longer stock it.
Description
For sectional doors up to 12.5m² and up-and-over garage doors up to 11.2m² with Nice BlueBUS technology. 230Vac irreversible electromechanical gear motor,for residential use, with belt drive, 24Vdc motor,with magnetic encoder.
Complete with track in 3x1m pieces.
Features
Rapid installation anywhere!
The adjustable head, cord-type release and cable-controlled, step-by-step release can be fitted in any part of the garage in order to actuate the system without a remote control device and without the need to install wall-mounted control units!
User-friendly thanks to the BlueBUS system
The BlueBUS system enables users to connect the photocell couples and control unit using just two wires!
Safe
Obstacle detection system and automatic programming of the working times; motor absorption is monitored during movement, self-diagnosis by means of a flashing light and courtesy light.
Acceleration and deceleration can be adjusted at the beginning and end of each opening and closing manoeuvre.
Can be connected with last generation sensitive edges 8.2Kohm.
Energy Saving
When the system is not being used it will switch over to standby, lowering consumption to just 2W.
Luminous: 60W lamp E27 that can be used as garage lightening.
Technical
- Power Supply: 230 Vac 50 Hz
- Motor Voltage: 24Vdc
- Battery backup option: Yes
- Force (N): 800N
- BlueBUS technology: Yes
- Solar Power Option: Yes
- Work Cycle: 50 Cycles/Day
- IP rating: 40
Operating Limits
- Up and Over Door – Height: 2.2m Width: 3m
- projecting up-and-over door – Height: 2.8m Width: 3m
- Sectional – Height: 2.5m Width: 3.5m
Product Specifications
Physical and Performance Attributes | |
|---|---|
| Protection Rating (IP) | 40 |
