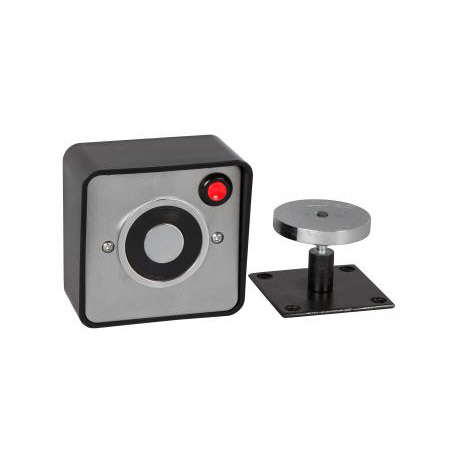

RGL DR-01/BK Door Hold Open Magnet With ABS Enclosure

The RGL DR-01/BK door hold open magnet with ABS enclosure has a manual release push button. Anti residual magnetism device that is wall mounted as standard.

£31.20

SKU: DR-01/BK Categories: , , Tag:

Description

The RGL DR-01/BK door hold open magnet with ABS enclosure has a manual release push button. Anti residual magnetism device that is wall mounted as standard.

Main Features:

  • Manual release push button
  • Anti residual magnetism device
  • Wall mount (as standard)

Brackets:

  • Floor mounting bracket available as an add-on (DR-01-BKT)
  • Armature on a Chain (DR-ARM-1/)

Technical Specifications:

  • Holding force: 45kg (450N)
  • Voltage: 24Vdc
  • Current draw: 70mA
  • 2mm Stainless Steel Face Plate
  • Extra high impact/strength ABS enclosure
  • Successfully fire tested to BSEN1634-1
  • – (30 & 60 minute fire doors)



Manuals/Datasheets:

Manuals and Guides

RGL DR-01/BK Door Hold Open Magnet With ABS Enclosure Manual

More Manuals and Guides

Lost your manual? Need programming instructions? You can find instruction manuals for nearly all of the products we sell, as well as hundreds more at manuals.easygates.co.uk

View Manuals and Guides

Product Specifications

Physical and Performance Attributes

Weight812 grams
Dimensions (L x W x H)90 × 90 × 50 mm
