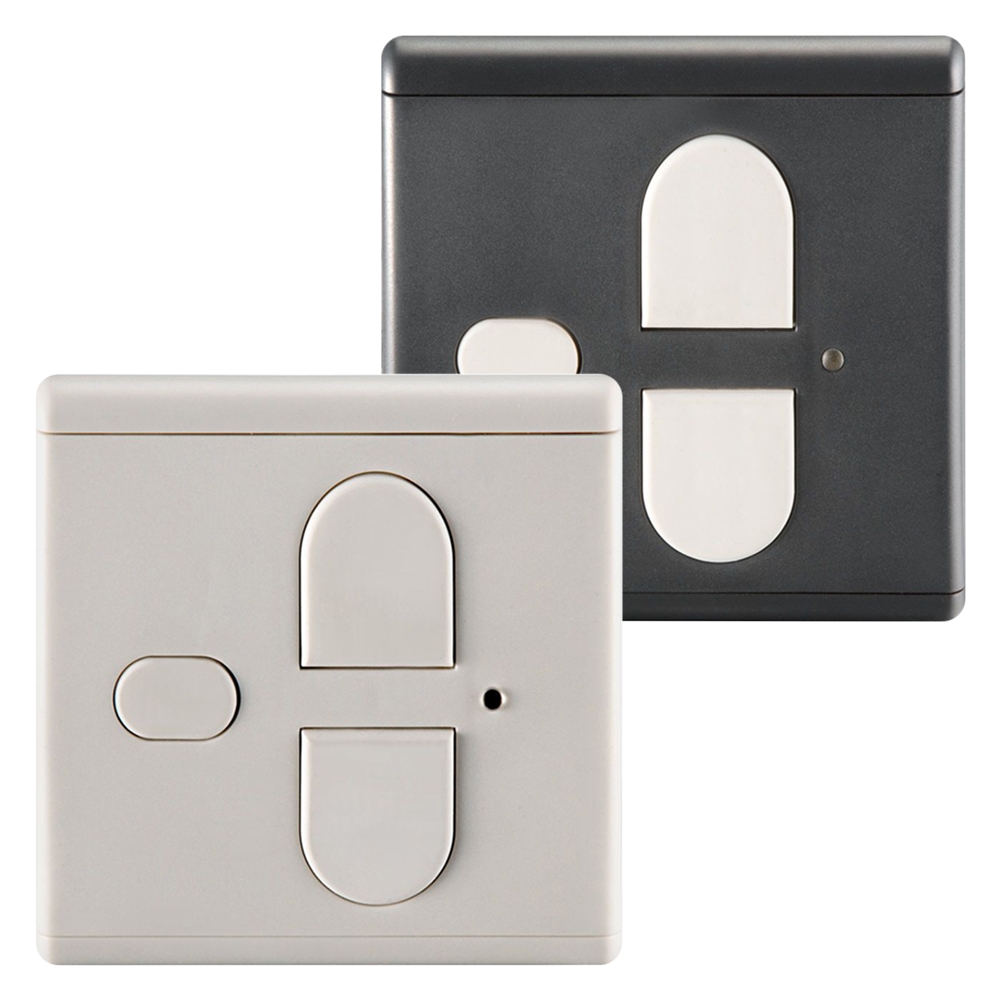

Sommer SOMtouch Radio Wall Control

Description

Via radio code transmission, an action can be triggered from a location where there is no power connection; no additional installation necessary

Features:

• Option for requesting door position/receiver status without travel motion thanks to a small button
• Bidirectional SOMloq2 radio control system
• Downward compatible with the Somloq Rolling code radio control system, making it possible to control existing operators and radio receivers
• Feedback of radio commands with LED
• Battery-operated – no additional installation effort is necessary
• Maximum protection against hackers due to 128-bit AES encryption with Rolling code
• Improved range and higher reliability due to the hop function, since the signal is actively forwarded by the SOMloq2 receiver

Technical Specs:

• Radio control system: SOMloq2
• Radio commands: 2
• Frequency: FM 868.8 MHz, FM 868.95 MHz
• Range: Approx. 50 m (depending on the surroundings)
• Dimensions: 80 × 85 × 14 mm
